Quick DC Retractable Thruster BTR185

Name: BTR185 - Quick DC Retractable Thruster - Get A Prop
Brand: Quick
Price: 10315 USD
Availability: InStock

Click Image for Gallery

Description
Reviews (0)

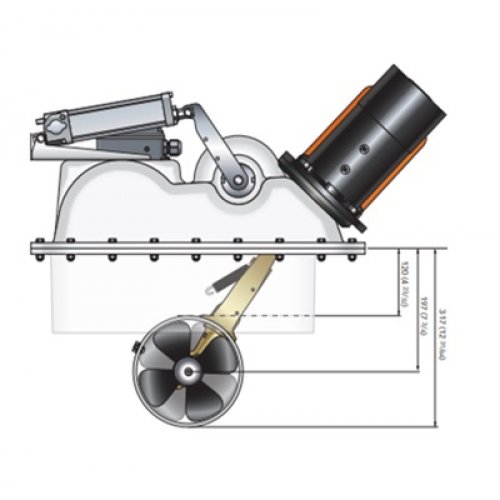

QUICK BTR 185-65/85/105 DC TWIN PROPELLER RETRACTABLE BOW THRUSTER 12V/24V MOTOR

Twin propellers made in sturdy composite material. Recommended boat length 26-53 ft. Solenoids protection carter in sturdy composite material. Composite material. Bronze gearbox. Independent zinc anode from the gearbox and easily replaceable. Equipped with elastic coupling. The Gearbox is created so that the behavior of the propeller is unaffected in either direction. The conical gears that make up the gearbox are reinforced and adjusted to ensure maximum efficiency. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life. The anodic zinc protection is easily replaceable.

The presence of a composite, aluminum, or steel counter flange, separated from the system's supporting structure, makes the installation of the entire system easy, safe, and compliant to current regulations on joints requirements. The engine joined to the structure inside the keel, and a single moving body crossing the in-out barrier as well as a protection against mechanical overloading caused by accidental impacts when the system is open, make the Quick project especially safe. A further guarantee of reliability is the high-quality materials (AISI316) used for both designed and commercial parts. High galvanic protection by means of sacrificial anodes. Reduced sizes and integrated electronics complete the list of BTR Quick propeller advantages.

For use with 26 to 53 ft. boats - Tunnel inside diameter 185mm / 7.28" - Twin 4 Blade Composite Propellers
