Quick Bow Thruster BTAC 300
QUICK

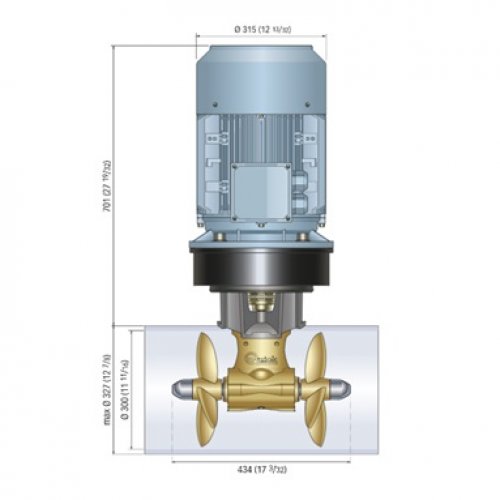

BT AC 300-300/350 TWIN NIBRAL PROPELLER BOW THRUSTER 15KW MOTOR
Twin Propellers are made in sturdy NiBral material.
Recommended boat length 85-111 ft. Solenoids protection carter in sturdy
composite material. Composite material. Bronze gearbox. Independent zinc anode
from the gearbox and easily replaceable. Equipped with elastic coupling.
The Gearbox is created so that the behavior of the propeller
is unaffected in either direction. The conical gears that make up the gearbox
are reinforced and adjusted to ensure maximum efficiency. Maintenance is not required
since the special highly resistant components guarantee a perfect lubrication
seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gear leg is provided with a
hydrodynamic profile that minimizes turbulence.
The twin 4-blade NiBral Propellers guarantee maximum thrust performance
and reduction in current absorption. This is made of composite materials,
resistant in every condition, and fastened with self-locking nuts in stainless
steel.
The case that protects the reversing contactors is made of
robust composite materials that are resistant to corrosion. The electrical
connections are provided with quick connectors.
The elastic joint that optimizes the alignment
between motor and gearbox is an exclusive Quick design. This acts as an even
tension device, preserving the operating system from impulses from the bow
thruster, with above-average results.

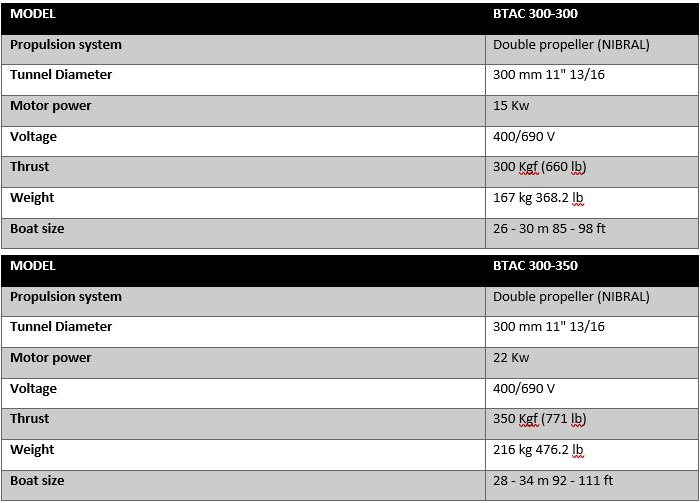

For use with 85 to 111 ft. boats - Tunnel inside diameter 300mm / 11.81" - Twin 4 Blade NiBral Propellers
- $12,023.83
