DC Bow Thruster BTQ185
QUICK
BTQ 185-55/75/95 DC SINGLE PROPELLER BOW THRUSTER 12V/24V, MOTOR
Single Propeller made in sturdy composite material.
Recommended boat length 26-36 ft. Solenoids protection carter in sturdy
composite material. Composite material. Bronze gearbox. Independent zinc anode
from the gearbox and easily replaceable. Equipped with elastic coupling.
The Gearbox is created so that the behavior of the propeller
is unaffected in either direction. The conical gears that make up the gearbox
are reinforced and adjusted to ensure maximum efficiency. Maintenance is not required
since the special highly resistant components guarantee a perfect lubrication
seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gear leg is provided with a
hydrodynamic profile that minimizes turbulence.
The 4-blade Propeller guarantee maximum thrust performance
and reduction in current absorption. This is made of composite materials,
resistant in every condition, and fastened with self-locking nuts in stainless
steel.
The case that protects the reversing contactors is made of
robust composite materials that are resistant to corrosion. The electrical
connections are provided with quick connectors.
The elastic joint that optimizes the alignment
between motor and gearbox is an exclusive Quick design. This acts as an even
tension device, preserving the operating system from impulses from the bow
thruster, with above-average results.

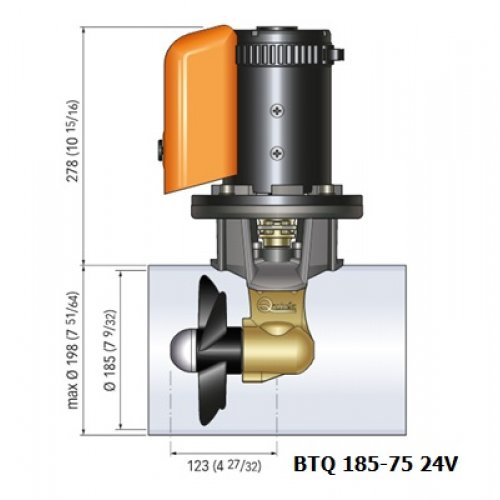

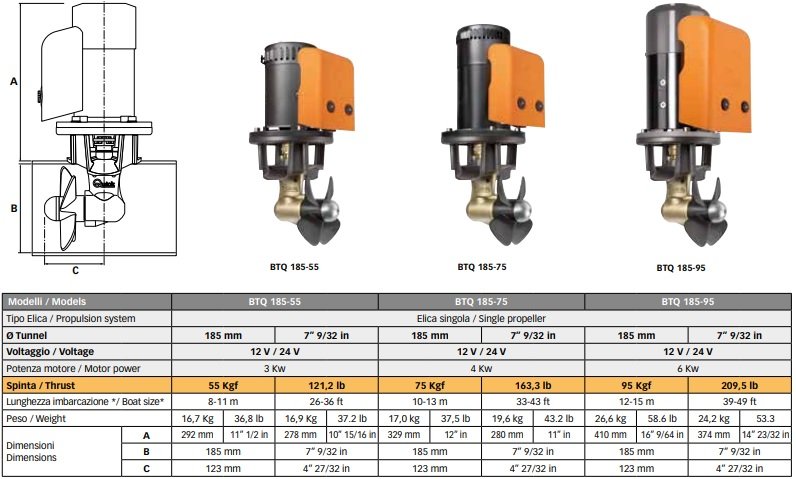

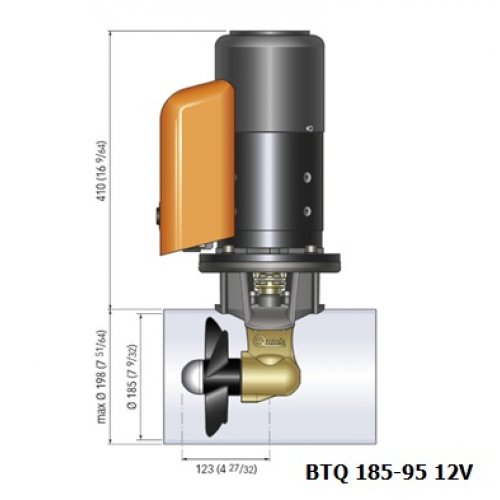

For use with 26 to 36 ft. boats - Tunnel inside diameter 185mm / 7.28" - Single 4 Blade Propeller
BTQ 185 - 55 Kgf, 12V, 3 Kw
BTQ 185 - 55 Kgf, 24V, 3 Kw
BTQ 185 - 75 Kgf, 12V, 4 Kw
BTQ 185 - 75 Kgf, 24V, 4 Kw
BTQ 185 - 95 Kgf, 12V, 6 Kw
BTQ 185 - 95 Kgf, 24V, 6 Kw
- $3,699.00
