Flexofold Propellers 16" X 2 Blade Composite

Flexofold Propellers 16" X 2 Blade Composite

Flexofold Propellers | Volvo and Yanmar Saildrives

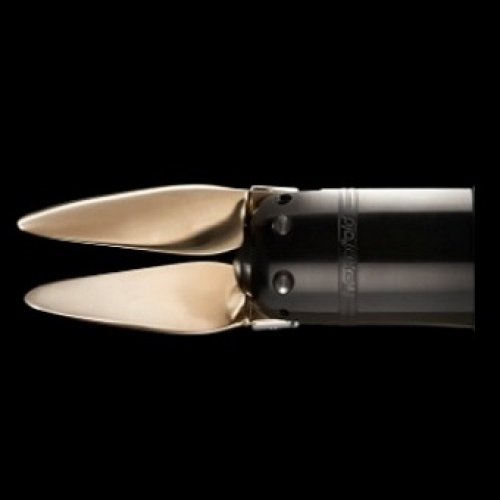

Taking advantage of modern composite materials, the Flexofold Composite propeller is not only immune to electrolysis, it also features a protective torsional hub, low weight and high strength – all combined in an attractive design. The Flexofold Composite propeller still provides the recognized low drag, higher speed and good performance under sail, as well as high thrust and strong maneuverability under power.

Propeller Sizing Form: Click here to submit information

FLEXOFOLD PROPELLERS HOME

PRICES FOB DENMARK - AIR FREIGHT SURCHARGE WILL APPLY Please note: Returns / Exchanges on Flexofold Propellers are only valid when vessel data is reviewed by Getaprop and Flexofold prior to purchase. Expect delivery within 7-10 Day's.

Special features:

  • Composite material immune to electrolysis
  • Light weight (2,8 kgs less a standard folding propeller)

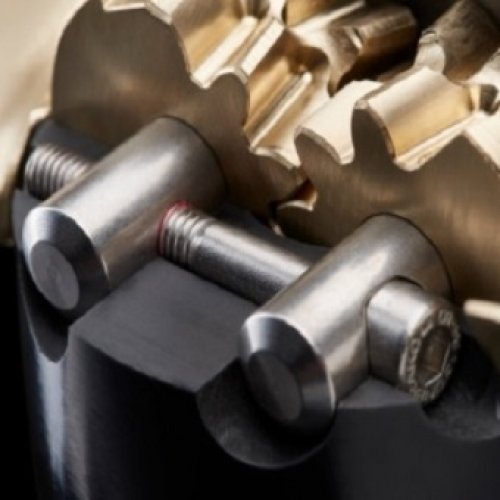

  • Helical gearing between the blades ensures a synchronized folding mechanism

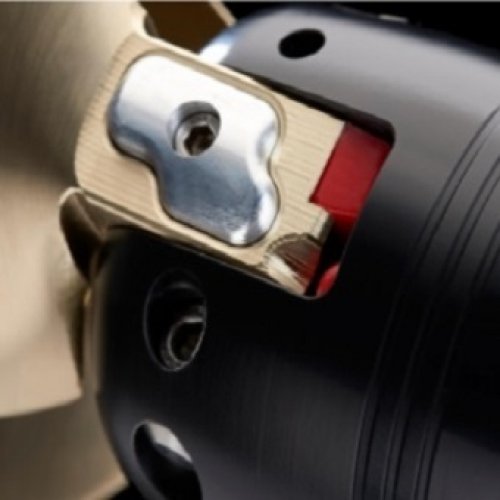

  • Patented mounting system absorbs impact from the centrifugal force and allows adjustment of play in gears

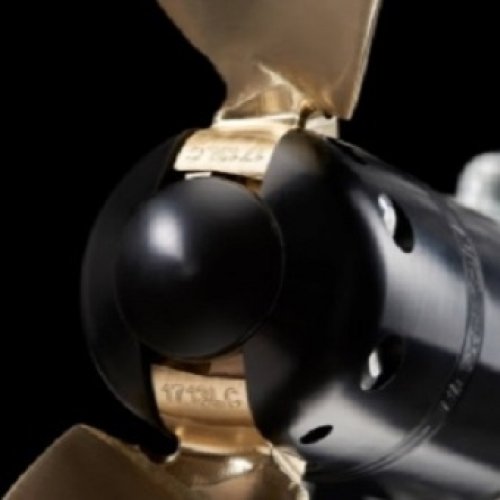

  • Protective cover over the gearing
  • Easy replaceable build-in anodes in each blade
  • Dual shock absorbers for quiet opening of the propeller
  • Special inner hub to protect the saildrive and gearbox from the propeller impact
  • Mounting screws are pre-applied with Loctite for mounting above as well as under water
  • Water lubricated - no need for maintenance

Immune to electrolysis:

A common issue for sailboat owners is electrolysis – coursed by electrical errors in the sailboat or shore power.

Today’s use of electrical equipment on sailboats increases the risk of wrong installations. Even if all installations are OK, docking in a marina with defective shore power can cause severe damage. This, as stray current easily damages the propeller – normally being the part with the best electrical connection into the water.

Our determination solving this matter has now resulted in the development of a new generation of folding propellers – the 2-blade Flexofold Composite!

Propeller sizes:

The 2-blade Composite propeller for saildrive is available in diameters of 15" to 18" - all in a wide range of pitches.

Available for both LEFT and RIGHT turning saildrives (saildrives are generally LEFT turning, however, catamarans might use counter rotating propeller on one side).

Compatible with:

The Flexofold propellers has a 100% fit on all common saildrives from Yanmar, Volvo Penta, Lombardini, Technodrive and Torqeedo Deep Blue.

To be fitted on Selva saildrives when using an adapter.

Sail drive Hub length: 2 and 3 blades

Hub for 2-blade propeller = 135 mm/5.314”

Hub for 3-blade propeller = 135 mm/5.314”

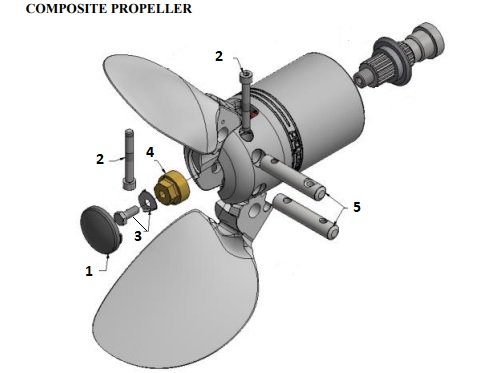

Propeller attaching hardware for Composite Propellers

Cover Plate (1)

Anchor Bolts M10X60 (2)

Shaft Nut Locking Screw M8X20 (3)

Sail Drive Shaft Nut M16 (4)

SailDrive Shaft Nut M20 (4)

Pivot Pins 16mm (5)

Shock Absorber A

Shock Absorber B

Zinc Anode
