Volvo Duoprop DPI Type H4 Set 22754004

Name: H4 Volvo Penta Duo Prop Set (22754004) – Get A Prop
Brand: Volvo
Price: 2481 USD
Availability: InStock

-21%

Volvo Penta Duoprop DPI Type H4 Set 22754004

Click Image for Gallery

Description
Reviews (0)

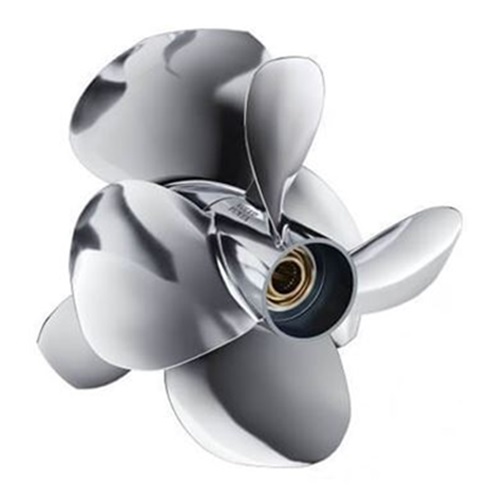

Volvo Penta Duoprop Type H4 Stainless Steel Propeller Set for DPI Outdrives.

Genuine OEM 22754004 Volvo Penta DPI H4 Stainless Duoprop kit includes one three blade front and one four blade rear propeller.

Designed to transmit the massive torque of the new generation of D4 and D6 engines. The patented blade geometry of the Type H propellers ensures optimal interaction between the front and rear propellers for exceptionally efficient, quiet and comfortable sailing. Made from a strong stainless-steel alloy for excellent power transfer and durability. Complete with shock-absorbing rubber sleeve and galvanic isolation - perfectly matched to the DPI and DPH drive.

Volvo Penta Type H stainless steel Duo prop screws, suitable for DPH and DPI drives.

Change from type G screws to type H screws on DPH drives

The sizing remains the same, i.e. a G6 screw corresponds to an H6 screw. If you need additional advice on which screw is best for you, please contact us.

Note! The screw cone must be replaced to install type H screws. The part number of the new screw cone is 23000185. Do not combine type G and H screws. Always use screws of the same type and size on the actuator (or on both actuators in dual installations).

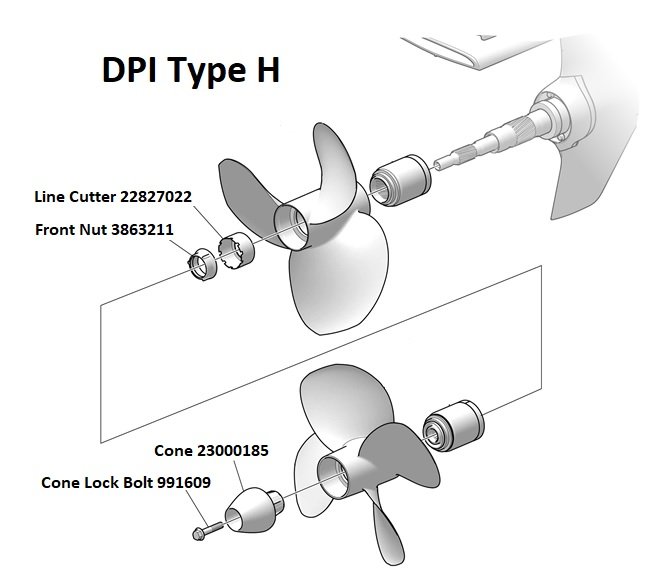

Installation Hardware, DPI Type H

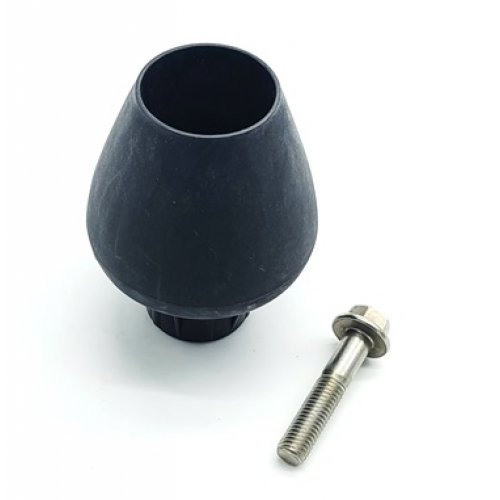

23000185 Volvo Penta DPI Cone

991609 Volvo Penta DPI Rear Cone Lock Bolt

3863211 Volvo Penta DPI Front Propeller Nut

22827022 Volvo Penta DPI Line Cutter

SIZE	SET NUMBER	FRONT PROP	REAR PROP
H2	22754002	22753972	22753982
H3	22754003	22753973	22753983
H4	22754004	22753974	22753984
H5	22754005	22753975	22753985
H6	22754006	22753976	22753986
H7	22754007	22753977	22753987
H8	22754008	22753978	22753988
H9	22754009	22753979	22753989
H10	22754010	22753980	22753990
